Installing RoomVision XL

Before you begin

Confirm the following before installation:

• A PoE+ network connection is available at the camera location

• The mounting position is decided (below display, above display, or side wall)

• The video output type is selected (HDMI, SDI, or USB)

Installation steps

1. Mount the camera

Mount RoomVision XL so the full seating area is clearly framed and faces look natural:

• Centred between the two displays, at eye height (recommended)

• Centred above the display

• Side wall, if front-wall mounting isn't possible

Check that it's level and firmly fixed. Stable mounting matters for smooth tracking.

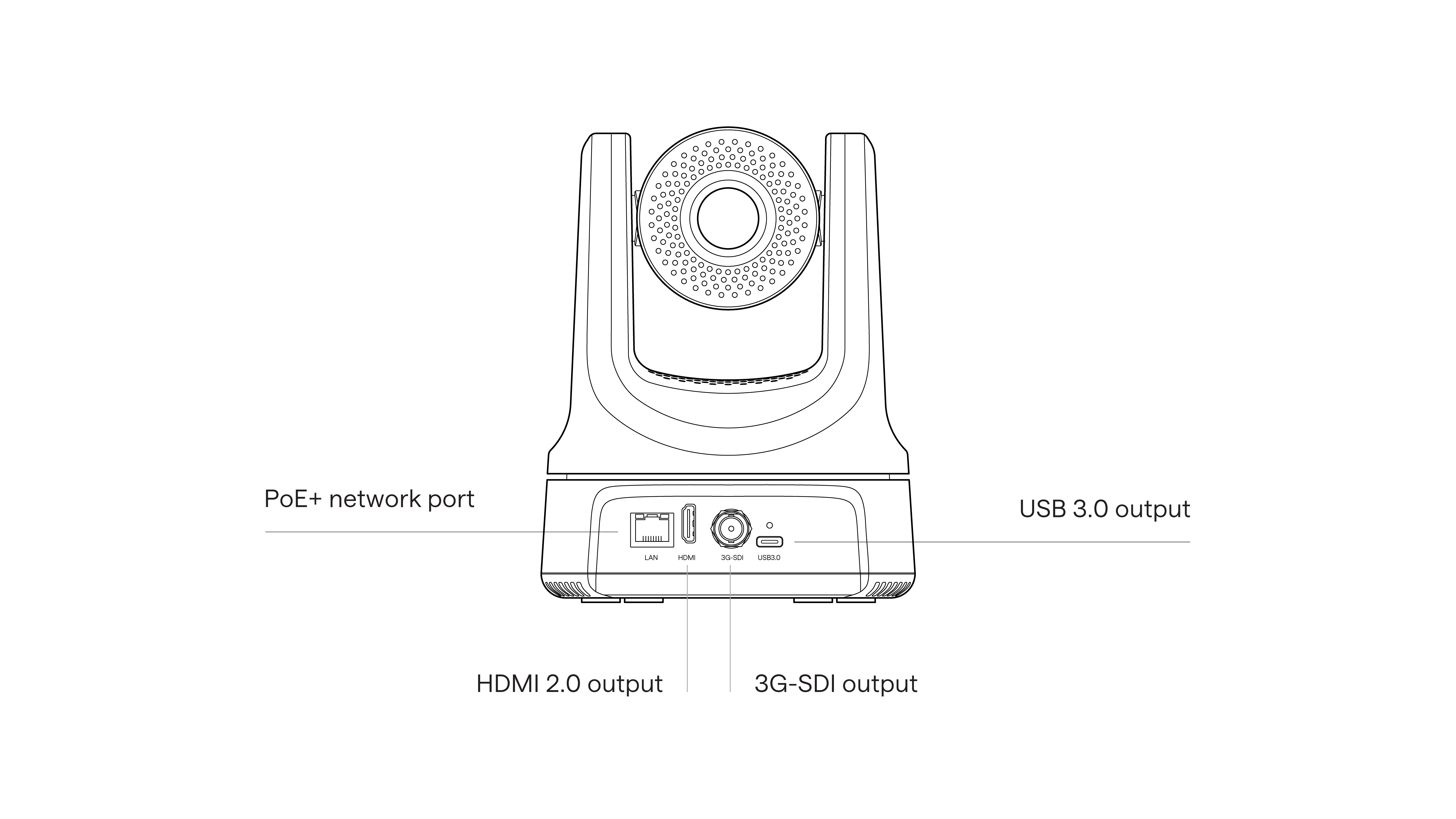

2. Connect network and power

RoomVision XL uses a single cable for power and control:

• Connect a network cable from the LAN port to a PoE+ switch

No external power supply is needed. The camera powers on automatically.

3. Connect video output

With power and control handled over the network, connect the video output that fits your system:

• HDMI for most room systems

• 3G-SDI for professional video workflows

• USB 3.0 for USB-based rooms or BYOD use

Choose the output that matches how the room is used.

Installation complete

RoomVision XL is now installed and ready for use.

In summary

• Stable mounting for accurate tracking

• Single PoE+ cable for power and control

• Flexible video output options

• Natural, automatic camera movement
