Installing RoomVision

Before you begin

Confirm the following before installation:

• A PoE network connection is available at the camera location

• The mounting position is decided (below display, above display, or side wall)

• The video output type is selected (HDMI, SDI, or USB)

Planning this first keeps installation quick and predictable.

———————————————————————————————————————————————

Installation steps

1. Mount the camera

Mount RoomVision where faces look natural, and the seating area is fully framed:

• Centred between the two displays, at eye height (recommended)

• Centred above the display

• Side wall, if front-wall mounting isn't possible

Secure the camera with appropriate hardware, and check that it's level and firmly fixed.

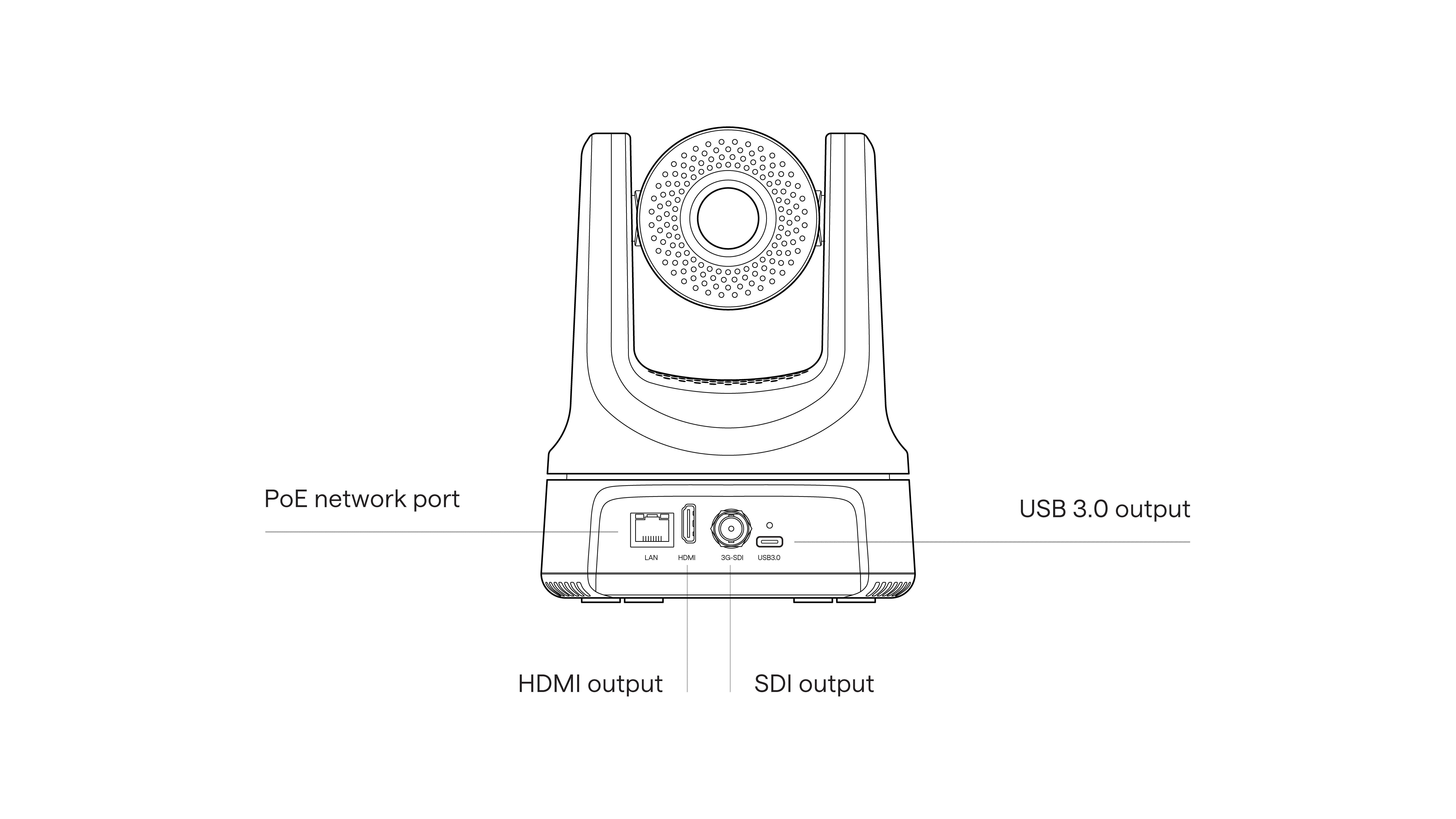

2. Connect network and power

RoomVision uses a single cable for power and control:

• Connect a network cable from the LAN port to a PoE switch

No external power supply is needed. The camera powers on automatically.

3. Connect video output

With power and control handled over the network, connect the video output that fits your system:

• HDMI for most room systems

• SDI for professional video workflows

• USB 3.0 for USB-based rooms or BYOD setups

Choose the output that matches how the room is used.

———————————————————————————————————————————————

Installation complete

RoomVision is now installed and ready for use.

———————————————————————————————————————————————

In summary

• Simple mounting options

• Single PoE cable for power and control

• Flexible video outputs

• Natural, automatic camera tracking
