RoomVision XL - hardware overview

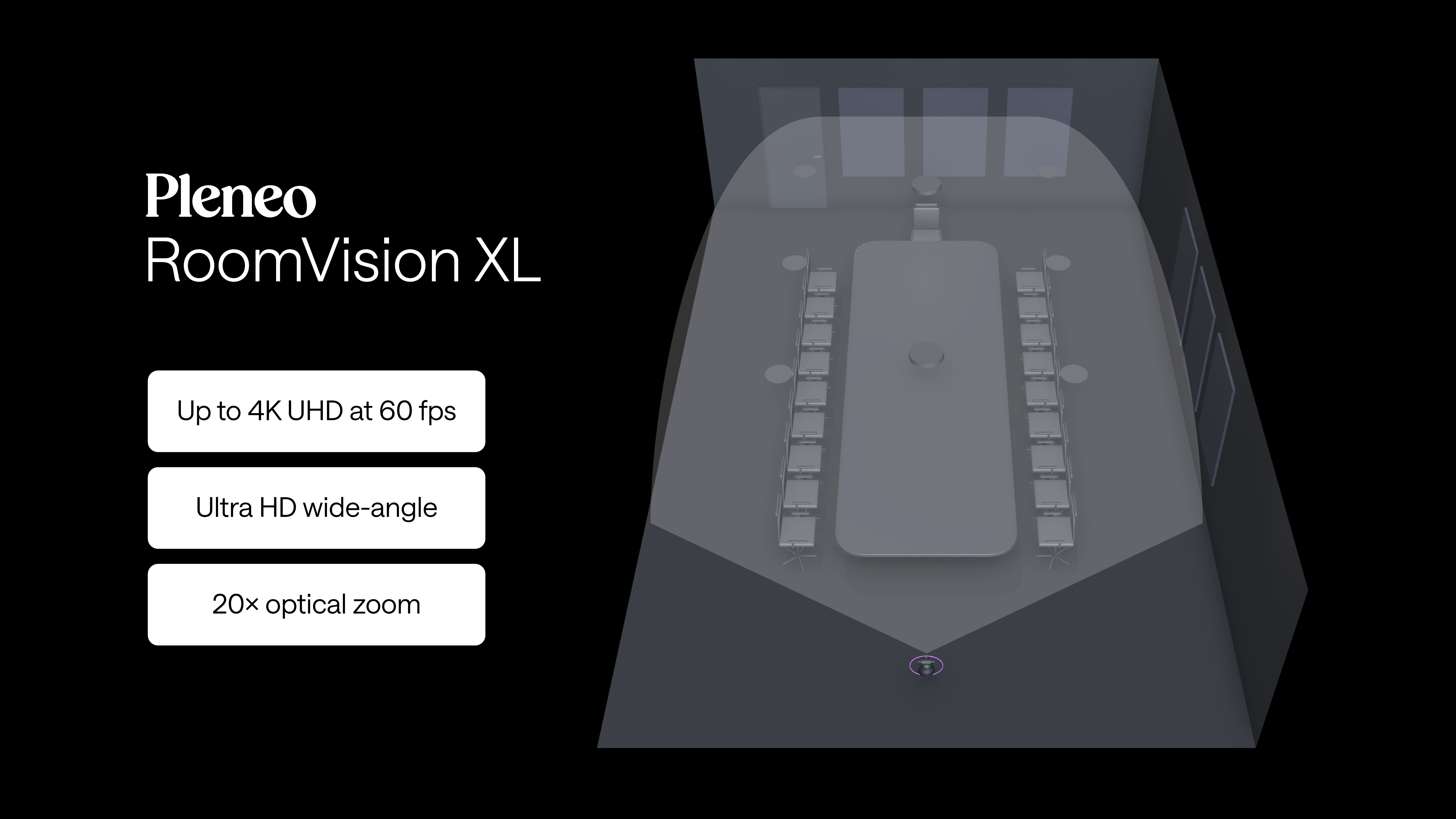

RoomVision XL is a PTZ camera with built-in humanoid-based camera tracking, designed for larger rooms where higher detail and longer reach are required.
Overview
Like RoomVision, it visually identifies people in the room and follows their movement automatically, keeping speakers naturally framed. The difference is scale: RoomVision XL is built to capture larger spaces with greater clarity, even when speakers are farther from the camera.
———————————————————————————————————————————————
Video performance
Video specifications:
Up to 4K Ultra HD at 60 fps
1/2.8″ UHD CMOS sensor (8.42 MP) with improved low-light performance
20× optical zoom
Horizontal field of view: 61.2°
Supports 4K, 1080p, and 720p output resolutions
———————————————————————————————————————————————
Camera tracking
RoomVision XL uses humanoid-based camera tracking to follow speakers naturally.
The camera identifies people based on human shape and movement, adjusting pan, tilt, and zoom automatically. If a speaker moves out of frame or is briefly obstructed, RoomVision XL quickly reacquires them and continues tracking, without manual intervention or presets.
———————————————————————————————————————————————
Network and power
RoomVision XL uses a single LAN connection for power and control.
PoE+ powered, no external power supply required
All control traffic handled over the network
Clean, single-cable installation
———————————————————————————————————————————————
Video output ports
With power and control handled over LAN, RoomVision XL offers flexible video output options:
HDMI 2.0
3G-SDI
USB 3.0
This supports integration with a wide range of room systems and workflows.
———————————————————————————————————————————————
In summary
AI camera tracking
4K Ultra HD video with high-detail imaging
Long-range 20× optical zoom
PoE+ single-cable power and control
Multiple video output options
