RoomVision - hardware overview

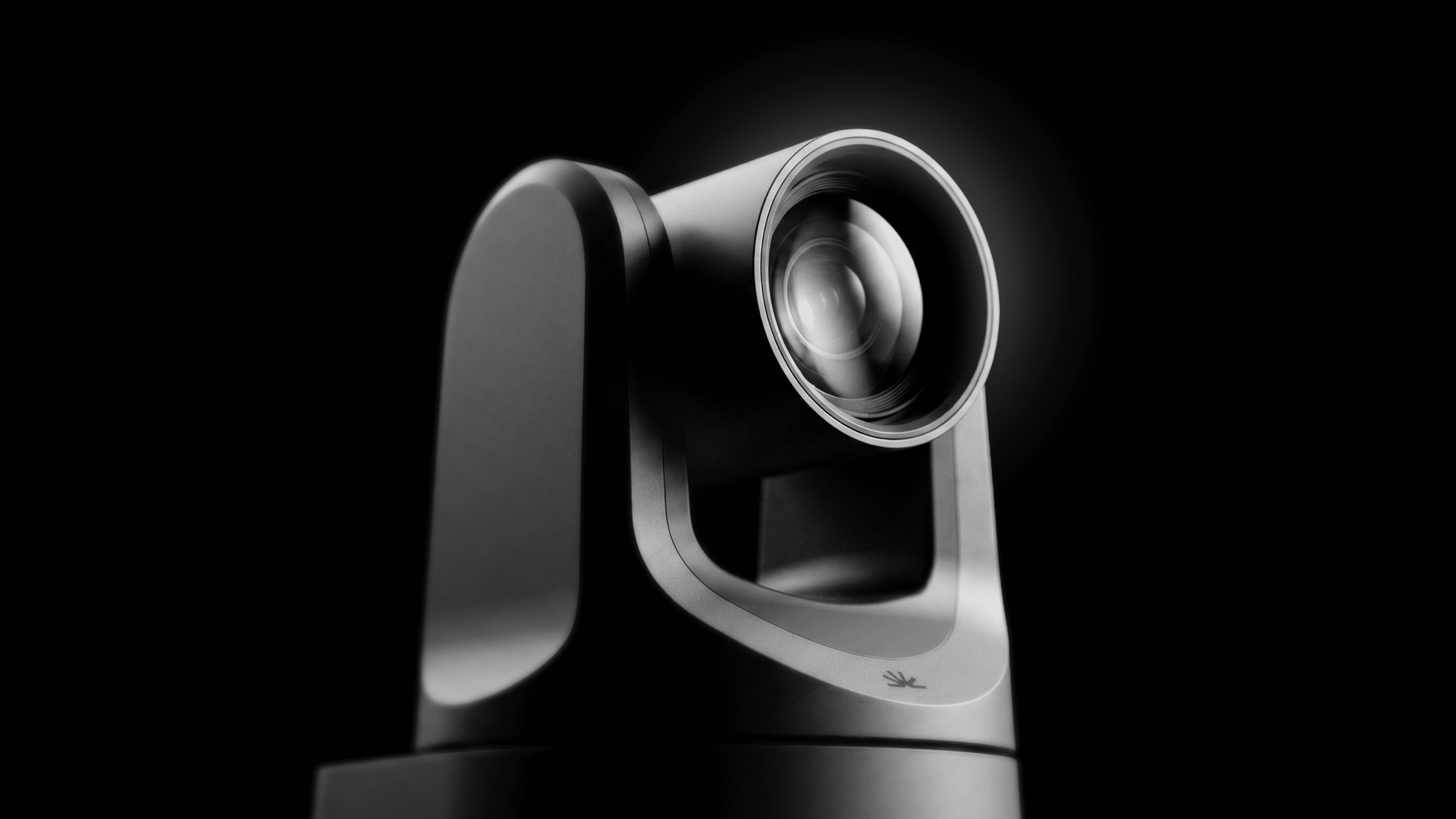

RoomVision is a PTZ camera with built-in humanoid-based tracking for natural, automatic framing.
Overview
RoomVision visually identifies the active speaker and follows their movement to keep them centered in frame. If the speaker moves out of view or is briefly blocked, RoomVision quickly finds them again and keeps tracking.
———————————————————————————————————————————————
Video performance
Video specifications:
Up to 1080p at 60 fps
Full HD wide-angle lens
12× optical zoom

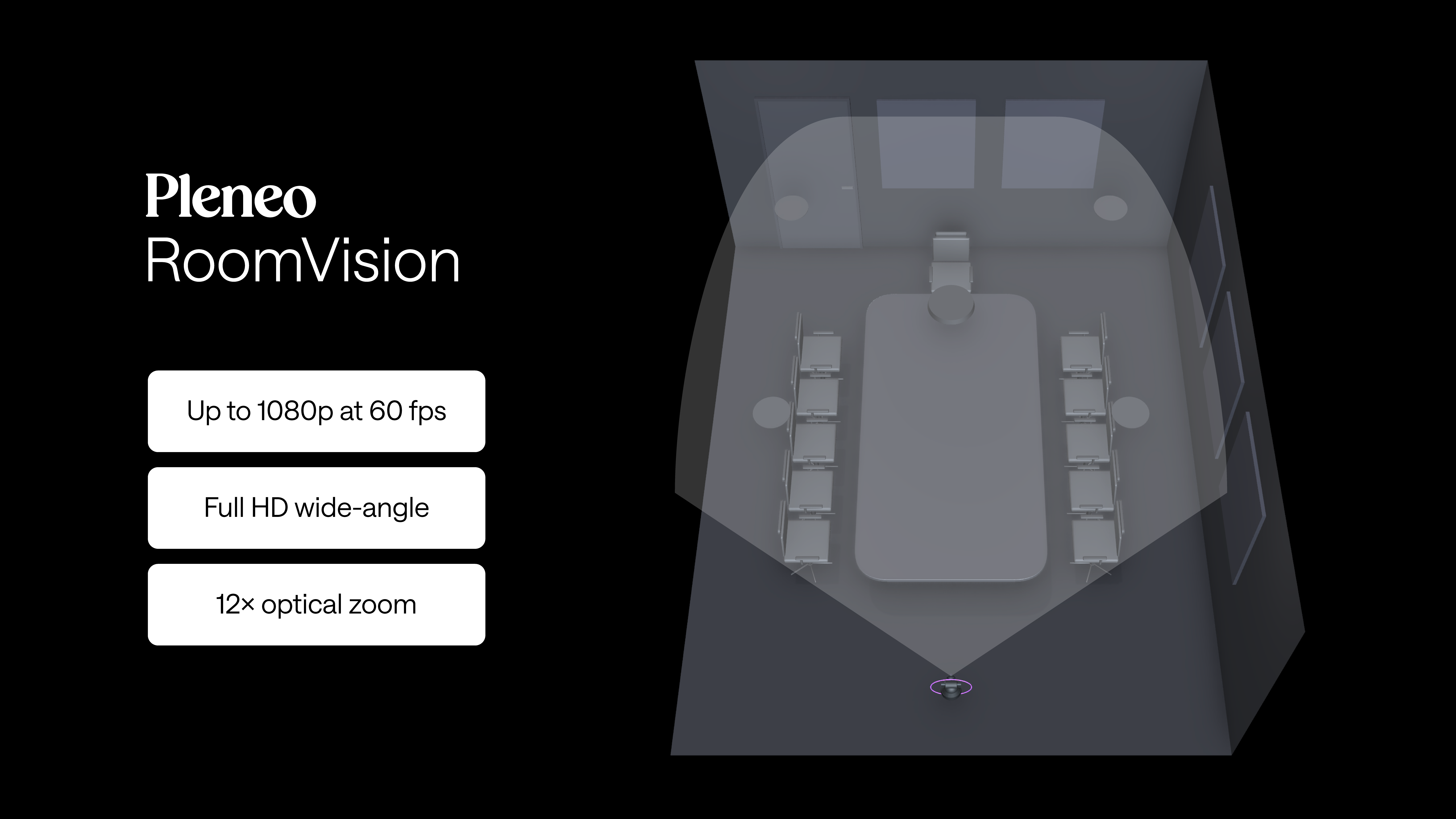

Horizontal field of view: 72.5°–6.9°
Vertical field of view: 44.8°–3.9°
———————————————————————————————————————————————
Network and power
RoomVision uses a single LAN connection for power and control.
PoE powered, no external power supply required
All control traffic handled over the network
Clean, single-cable installation
———————————————————————————————————————————————
Video output ports
With power and control handled over the LAN port, all remaining connections are dedicated to video output.
HDMI (v1.3)
SDI
USB 3.0
These outputs provide flexibility for integration with a wide range of room systems and workflows.
———————————————————————————————————————————————
USB connectivity
The USB 3.0 port supports direct video output for USB-based room systems and BYOD use cases, making RoomVision suitable for both dedicated room setups and flexible meeting environments.
———————————————————————————————————————————————
In summary
AI camera tracking
Smooth, natural framing without presets
Full HD video with optical zoom
PoE single-cable power and control
Multiple video output options
